VT64 GPU搭載システム製品

弊社オリジナルのBTO（Build to Order）製品であるVT64シリーズは、お客様の様々なニーズに対応可能な、イージーオーダー製品です。
複数のGPUを搭載可能なシステム製品をご紹介します。

HPCやAI/Deep Leaning用途では、性能だけではなく耐久性や信頼性/保証面などから、VTはGPUとしてNVIDIAデータセンターGPUを推奨しております。用途やコストなどでNVIDIA GeForceシリーズをご希望の場合は、ご相談ください。
GPU搭載システムのご利用には、導入システムの電源容量や筐体の冷却性能など以外に、ご利用環境の給電能力や空調、騒音に対する配慮など、注意しなければならないことがたくさんあります。ここにない製品や構成のカスタマイズ、価格や納期なども含め、お気軽にお問い合わせください。

VT64 シリーズ（GPU搭載製品）

VT64 GPUワークステーションシリーズ

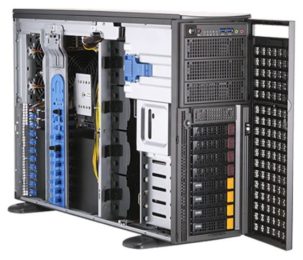

VT64 Workstation XS2-4S-4G

4GPU対応
大容量冗長電源を装備したデュアルCPU ワークステーション
4U 筐体としてラックマウント可能
- Base model：SYS-740GP-TNRT
- 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 16 DIMM Slots;
  Up to 4TB DRAM;
  Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ;
  3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
  Intel® Optane™ Persistent Memory 200 series
- 1 PCI-E 4.0 x8 LP
  4 PCI-E 4.0 x16 (double-width) slots, 2 PCI-E 4.0 x16 (single-width) slots,
- 2 M.2 NVMe or SATA Supported
  Total 8x 3.5″ Hot-swap drive bays
  Up to 8 NVMe drives (4 NVMe drives supported by default)
- 4 Removable heavy duty fans w/ Optimal Fan Speed Control
- 2x 2200W redundant Titanium level power supplies
- W x H x D=178 x 460 x 673 mm
NVIDIA A100,A40 and RTX A6000
４基搭載可能
VT64 Workstation XS-4S-4G

4GPU対応
大容量冗長電源を装備したシングルCPU ワークステーション
4U筐体としてラックマウント可能
- Base model：SYS-540A-TR
- 3rd Gen Intel® Xeon® Scalable processors Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
- 7 PCI-E 4.0 Slots
- 1x 10GBase-T, 1x 1GbE, and dedicated IPMI LAN ports
- 4x 92mm hot-swap fan(s) 2x 80mm rear hot-swap exhaust PWM fan(s)
- 2200W Redundant (1+1) Power Supplies Titanium Level Certified
- W x H x D=178 x 460x 673 mm

VT64 ラックマウントサーバシリーズ

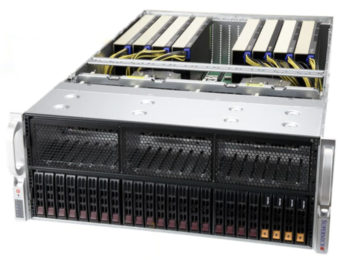

VT64 Server AE2-4S-8G

NVIDIA A100 8枚搭載可能
PCIeスロットタイプのGPU搭載 4Uサーバ
- Base model：AS -4124GS-TNR
- Dual AMD EPYC™ 7003/7002 Series Processors
- Up to 8TB Registered ECC DDR4
  3200MHz SDRAM in 32 DIMMs
- Expansion slots : 9 PCI-E 4.0 x16
- Integrated IPMI 2.0 + KVM with dedicated LAN
- Video via Aspeed AST2500 BMC
- Dual GbE LAN Ports
- Up to 24x 2.5″SAS/SATA drive bays
- 2000W/200V(2+2) Redundant Power Supplies Titanium level
- W x H x D=437 x 178 x 737 mm
NVIDIA A100 (PCIe) 8基搭載可能
VT64 Server AE2-2S-4PG

4GPU対応

NVLink™対応のNVIDA A100 搭載 2Uサーバ
- Base model：AS -2124GQ-NART
- Dual AMD EPYC™ 7003/7002 Series Processors
- Up to 8TB Registered ECC DDR4
  3200MHz SDRAM in 32 DIMMs
- Expansion slots:
  4 PCI-E Gen 4 x16 slots (LP)
  1 PCI-E Gen 4 x8 slot (LP)
- Integrated IPMI 2.0 + KVM with dedicated LAN
- Video via Aspeed AST2600 BMC
- Dual 10GbE LAN Ports
- 2200W Redundant Power Supplies Platinum Level
- W x H x D=437 x 89 x 823 mm
NVIDA A100 SXM4 4基搭載可能
（40GB HBM2 or 80GB HBM2e）
VT64 Server AE2-2S-8PG

8GPU対応
NVLink™対応のNVIDA A100 搭載 4Uサーバ
- Base model：AS-4124GO-NART
- Dual AMD EPYC™ 7003/7002 Series Processors
- Up to 8TB Registered ECC DDR4
  3200MHz SDRAM in 32 DIMMs
- Expansion slots:
  8 PCI-E 4.0 x16 via PCI-E switch
  1 PCI-E 4.0 x16 LP
  1 PCI-E 4.0 x8 LP via CPUs
- Integrated IPMI 2.0 + KVM with dedicated LAN
- Video via Aspeed AST2600 BMC
- 6 Hot-swap U.2 NVMe 2.5″ drive bays
- 2200W (3+1) Redundant Power Supplies Platinum Level
  option：3000W (2+2) Redundant Power Supplies Titanium Level
- W x H x D=446 x 174 x 900 mm
NVIDA A100 SXM4 8基搭載可能
（40GB HBM2 or 80GB HBM2e ）
VT64 Server XS2-1S-4PG

4GPU対応

NVLink™対応のNVIDA Tesla™ V100 搭載 1Uサーバ
- Base model：SYS-1029GQ-TCRT
- 4 NVIDA Tesla™ V100 SXM2 (16/32GB HBM2 Memory）
- Dual Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
- 12DIMMs; up to 3TB 3DS ECC
  DDR4-2933MHz RDIMM/LRDIMM
  Supports Intel® Optane™ DCPMM
- Expansion Slots
  4 PCI-E 3.0 x16 slots(2Standerd, 2LP)
- Integrated IPMI 2.0
- Video via Aspeed AST2500 BMC
- Dual 10GbE LAN ports
- 2 Hot-swap 2.5″ SAS/SATA drive bays
- 2000W/200V Redundant Power Supplies Titanium level
- W x H x D=437 x 43 x 997 mm
NVIDA Tesla™ V100(SXM2) ４基搭載可能

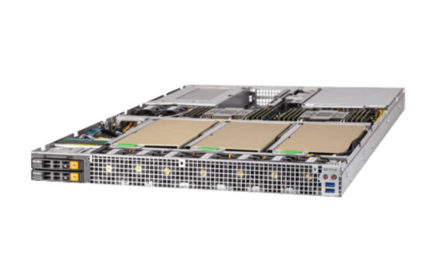

VT64 Server XS2-1S-4G

4GPU対応
PCIeスロットタイプのGPU搭載 1Uサーバ
- Base model：SYS-120GQ-TNRT
- 3rd Gen Intel® Xeon® Scalable processors
- 16 DIMM Slots;
  Up to 4TB DRAM;
  Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ;
  3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
  Intel® Optane™ Persistent Memory 200 series
- 6 PCI-E Gen 4.0 x16 (4 FHFL & 2 LP)
- 1 M.2 NVMe Supported
  2x 2.5″ NVMe Hot-swap drive bays
  2x 2.5″ SATA Internal Fixed drive bays
- 9 counter rotating fans w/ Optimal Fan Speed Control
- 2x 2000W redundant Titanium level power supplies
- W x H x D=437 x 43 x 894 mm
NVIDA A100,A40 4基搭載可能
VT64 Server XS2-2S-6G

6GPU対応 2Uサーバ
- Base model：SYS-220GP-TNR
- 3rd Gen Intel® Xeon® Scalable processors
- 16 DIMM Slots;
  Up to 4TB DRAM;
  Up to 4TB Intel® Optane™ Persistent Memory (up to 6TB with DRAM) ;
  3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
  Intel® Optane™ Persistent Memory 200 series
- 2 PCI-E Gen 4.0 x8 LP
  6 PCI-E Gen 4.0 x16 FHFL
- Flexible networking options
- 10x 2.5″ Hot-swap drive bays
  2 M.2 NVMe Supported
  Up to 6x 2.5″ NVMe
- 5 counter rotating fans w/ Optimal Fan Speed Control
- 2x 2600W redundant Titanium level power supplies
- W x H x D=437 x 89 x 787 mm
NVIDIA A100,A40 and RTX A6000
6基搭載可能

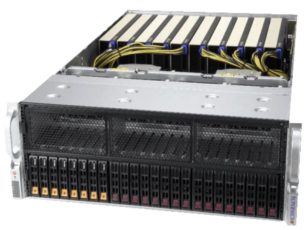

VT64 Server XS2-4S-10G

10GPU対応 4Uサーバ
- Base model：SYS-420GP-TNR
- 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A Chipset
- 32 DIMM Slots;
  Up to 8TB DRAM;
  Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
  3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
  Intel® Optane™ Persistent Memory 200 series
- 12 PCI-E Gen 4.0 X16 FHFL Slots
  AIOM/OCP 3.0 Support
- Flexible networking options
- 2x M.2 NVMe
  8x HOT SWAP 2.5” NVMe
  8x HOT SWAP 2.5” SATA
  8x HOT SWAP 2.5” SATA/SAS (AOC required)
  Total 24x 2.5″ Hot-swap drive bays
- 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
- 4x 2000W redundant Titanium level power supplies
- W x H x D=437 x 178 x 737 mm
NVIDIA A100,A40 and RTX A6000
10基搭載可能

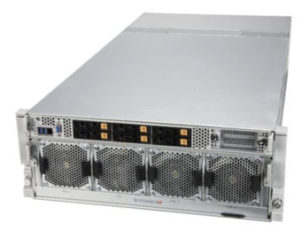

VT64 Server XS2-4S-8PG

8GPU対応
NVLink™対応のNVIDIA HGX A100搭載 4Uサーバ
- Base model：SYS-420GP-TNAR
- 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A Chipset
- 32 DIMM Slots;
  Up to 8TB DRAM;
  Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
  3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
  Intel® Optane™ Persistent Memory 200 series
- 10 PCI-E Gen 4.0 X16 LP Slots
  AIOM/OCP 3.0 Support
- Flexible networking options
- 2 M.2 NVMe and SATA
  6x 2.5″ Hot-swap NVMe/SATA/SAS drive bays
- 4 heavy duty fans with optimal fan speed control
- 4x 2200W redundant Titanium level power supplies
  option:4x 3000W redundant Titanium level power supplies
- W x H x D=446 x 174 x 900 mm
NVIDIA HGX A100 8基搭載可能
VT64 Server XS2-10S-16PG

16GPU対応

NVLink™対応のNVIDA Tesla™ V100 搭載 10Uサーバ
- Base model：SYS-9029GP-TVRT
- 16 NVIDA Tesla™ V100 SXM3 (32GB HBM2 Memory）
- Dual Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
- 24DIMMs; up to 3TB 3DS ECC
  DDR4-2933MHz RDIMM/LRDIMM
- Expansion Slots
  2 PCI-E 3.0 x16 (LP)
- Integrated IPMI 2.0
- Video via Aspeed AST2500 BMC
- Dual 10GbE LAN Ports
- 16 Hot-swap 2.5″ NVMe drives,
  6 Hot-swap 2.5″ SATA3 drive bays
- 2 NVMe based M.2 SSD(Factors: 2280, 22110)
- 3000W/200V(5+1) Redundant Power Supplies Titanum level
- W x H x D=452 x 437 x 705 mm
NVIDA Tesla™ V100(SXM3) 16基搭載可能

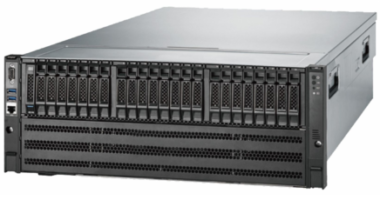

VT64 Server AE2-4S-8GIP

NVIDIA A100 8枚搭載可能
PCIeスロットタイプのGPU搭載 4Uサーバ
- Base model：NF5468A5
- Dual AMD EPYC™ 7003/7002 Series Processors
  3 channels xGMI
- Up to 8TB Registered ECC DDR4
  3200MHz SDRAM in 32 DIMMs
- Expansion slots : 8 PCI-E 4.0 x16
  1 pcs standard x16 OCP 3.0 card or 1pcs standard x16 PCIe 4.0 card
  1 pcs x16 PCIe 4.0 add-in card or 1pcs x8 PCIe 3.0 add-in card + 1pcs x8 PCIe 4.0 add-in card
- Integrated IPMI 2.0 + KVM with dedicated LAN
- Video via Aspeed AST2500 BMC
- 2 x M.2 SATA SSDs
  Up to 24 × 2.5-inch SATA/SAS drive bays

  　or
  Up to 12 × 3.5-inch SATA/SAS drive bays
  (4 × NVMe drive included)
- 2200W/200V(2+2) Redundant Power Supplies Platinum level
- W x H x D=438.5 x 175.5 x 830 mm
NVIDA A100,A40、AMD MI100（PCIe)
8基搭載可能
