VT64 ワークステーション・ラックマウントサーバ 製品
弊社オリジナルのBTO(Build to Order)製品であるVT64シリーズは、お客様の様々なニーズに対応可能な、イージーオーダー製品です。
HPC分野を中心とする弊社で、代表的なワークステーションと19インチラックマウント製品をご紹介します。
ここにない製品や構成のカスタマイズ、価格や納期など、お気軽にお問い合わせください。
VT64 シリーズ ( x86_64プラットフォーム)
VT64ワークステーション シリーズ
デュアルプロセッサー ワークステーション
-
VT64 Workstation
XS2-4S-Silentコンパクトな「静音仕様」ワークステーション
3rd Gen Intel® Xeon® Scalable processors 2基搭載
最大メモリ2TB(16x 128 GB DRAM)
※PMem使用時、最大メモリ5TB(8x 128 GB DRAM and 8x 512 GB PMem)- Base model:SYS-730A-I
- Intel® C621A Chipset
- 5 PCI-E 4.0 x16, 1 PCI-E 4.0 x8, 2 NVMe M.2 slots
- 2x 5.25″ peripheral drive bays
4x internal 3.5″ SATA rotating drive bays for easy access
up to 4x NVMe SSD support with opitonal cables and converter trays - New front bezel with keylock for added security
- 1 VGA, 1 COM, 4 USB 3.0 (rear), 2 USB 3.0 (front), 7.1 HD Audio
Supports up to two double width active GPUs - 1200W/200V(100V) Power Supplies Platinum Level
- W x H x D=193 x 424 x 525.3mm
-
VT64 Workstation
XS2-4Sオールマイティに使用できるワークステーション
4U筐体としてラックマウント可能
3rd Gen Intel® Xeon® Scalable processors 2基搭載
最大メモリ4TB (16x 256 GB DRAM)
※PMem使用時、最大メモリ6TB (8x 256 GB DRAM and 8x 512 GB PMem)- Base model:SYS-740A-T
- Intel® C621A Chipset
- 5 PCI-E 4.0 x16, 1 PCI-E 4.0 x8, 2 NVMe M.2 slots
- 3x 5.25″ peripheral drive bays
8x 3.5″ hot-swap SATA (default) drive bays (SAS supported w/optional RAID controller)
up to 4x NVMe SSD support with optional cables - Redundant Power Supplies
- 1 VGA, 1 COM, 4 USB 3.0 (rear), 2 USB 3.0 (front), 7.1 HD Audio
Supports up to two double width active GPUs - 1200W/200V(100V) Power Supplies Titanium Level
- W x H x D=178 x 452 x 647mm
シングルプロセッサー ワークステーション
高クロックを生かす用途や、メニーコアをお求めやすく提供するワークステーション シリーズ
-
VT64 Workstation
XW-4S「静音仕様」ワークステーション
Intel® Xeon® W-1200 Series and
10th Gen Intel® Core™ Processors 搭載
最大メモリ128GB Unbuffered ECC/non-ECC UDIMM(4DIMM)- Base model:SYS-530A-IL
- 2 PCI-E 3.0 x16 slots (16/NA or 8/8) M.2 Interface: 2 PCI-E 3.0 x4
- Dual LAN ports, GbE and 2.5GbE
- 12cm PWM quiet exhaust fan and optional 12cm front intake fan
- 668W 80PLUS Platinum Power Supply
- W x H x L=193 x 424 x 525.3mm
-
VT64 Workstation
Ci-4S高クロックCPU向けワークステーション
11th Gen Intel® Core™ Processors (i3/i5/i7/i9),
Pentium® and Celeron® Processors 搭載
最大メモリ128GB Unbuffered ECC/non-ECC UDIMM(4DIMM)- Base model:SYS-503AD-I
- 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1
2xPCI-E 4.0 x16 Slots (Slot#4 and Slot#6 can be configured as 16/NA, 8/8) M.2 Interface: 1 PCI-E 4.0 x4
and 2 PCI-E 3.0 x4 - Single LAN with Intel® i219V 1Gb Single LAN with Marvell AQC113C 10Gb
- 3x 12cm PWM Fans
- 750W 80PLUS Gold Power Supply
- W x H x L=200 x 460 x 493mm
-

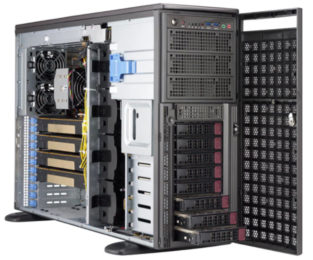

VT64 Workstation
XS-4SシングルCPUでも搭載メモリにこだわったワークステーション
3rd Gen Intel® Xeon® Scalable processors 搭載
最大メモリ4TB (16 DIMM)- Base model:SYS-540A-TR
- LGA-4189 (Socket P+) supported,
CPU TDP supports Up to 270W TDP - 7 PCI-E 4.0 Slots
- 1x 10GBase-T, 1x 1GbE, and dedicated IPMI LAN ports
- 4x 92mm hot-swap fan(s) 2x 80mm rear hot-swap
exhaust PWM fan(s) - 2200W Redundant (1+1) Power Supplies Titanium Level Certified
- W x H x L=178 x 460 x 673mm
VT64 ラックマウントサーバ シリーズ
-

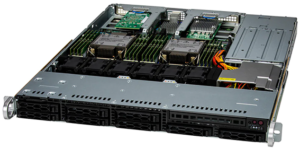

VT64 Server XS2-1S
標準的な1Uサーバ(2.5/3.5インチHDD搭載モデルあり)
4th Generation Intel® Xeon® Scalable processors 2基搭載
最大メモリ4TB (16DIMM)- Base model:
SYS-121C-TN2R
8x 2.5″ hot-swap SATA/SAS w/ 2x hybrid NVME drive bays
SYS-611C-TN4R
4x 3.5/2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays - Dual sockets E (LGA-4677) 4rd Gen Intel® Xeon® Scalable processors
- 16 DIMMs up to 4TB 3DS ECC DDR5-4800: RDIMM
- 2 PCIe 5.0 x16 FHHL;
2 PCIe 5.0 x16 AIOM (OCP 3.0);
2 PCIe 5.0 x4 NVMe M.2 - Dual AIOM with NCSI (OCP 3.0) for networking,
1 dedicated IPMI LAN - 1 VGA, 1 COM, 2 USB 3.0 (rear)
- W x H x L = 437 x 43 x 597mm
- W x H x L = 437 x 43 x 650 mm
- 6 counter-rotating 4 cm PWM fans
with optimal fan speed control, 2 air shrouds - 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
SYS-121C-TN2R
SYS-611C-TN4R
- Base model:
-

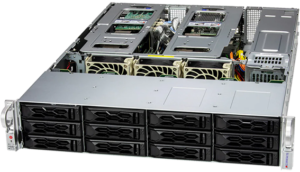

VT64 Server XS2-2S
標準的な2Uサーバ(2.5/3.5インチHDD搭載モデルあり)
4th Generation Intel® Xeon® Scalable processors 2基搭載
最大メモリ4TB (16DIMM)- Base model:SYS-621C-TN12R
- Dual sockets E (LGA-4677) 4rd Gen Intel® Xeon® Scalable processors
- 16 DIMMs up to 4TB 3DS ECC DDR5-4800: RDIMM
- 4 PCIe 5.0 x16 FHHL (OR) 2 PCIe 5.0 x16 FHHL and 4 PCIe 5.0 x8 FHHL;
2 PCIe 5.0 x16 AIOM (OCP 3.0);
2 PCIe 5.0 x4 NVMe M.2 - Dual AIOM with NCSI (OCP 3.0) for networking,
1 dedicated IPMI LAN - 12x 3.5/2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays
- 3 heavy duty fans with optimal fan speed control,
1 air shroud - 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
- 1 VGA, 1 COM, 2 USB 3.0 (rear)
- W x H x L = 437 x 89 x 648 mm
-

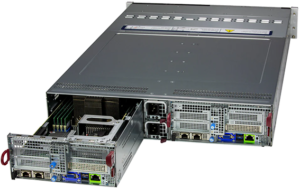

VT64 Server XS2-2T
2U 2ノード構成 HPCクラスタ計算ノード向けサーバ
4th Generation Intel® Xeon® Scalable processors 2基/ノード搭載
最大メモリ 4TB (16DIMM)per node/per node- Base model:SYS-221BT-DNTR
- Socket E (LGA 4677) support 4th Gen Intel® Xeon® Scalable processors
- Intel® C741
- Up to 16 DIMMs ECC DDR5 Slots
- 1 PCIe 5.0 x16 (LP) slot;
2 PCIe 5.0 x8 (LP) slot;
Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1 - Network connectivity via AIOM (OCP 3.0 compliant)
- 12 hot-Swap 2.5” drive bays (2x PCIe 5.0 NVMe and 10x PCIe 4.0 NVMe/SATA)
- 4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
- 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
- W x H x L = 449 x 88 x 730 mm
-

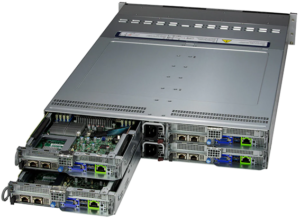

VT64 Server XS2-2Q
2U 4ノード構成 HPCクラスタ計算ノード向けサーバ
4th Generation Intel® Xeon® Scalable processors 2基/ノード搭載
最大メモリ 4TB (16DIMM)per node- Base model:SYS-221BT-HNTR
- Socket E (LGA 4677) support 4th Gen Intel® Xeon® Scalable processors
- Intel® C741
- Up to 16 DIMMs ECC DDR5 Slots
- 2 PCIe 5.0 x16 (LP) slot;
Internal PCIe 4.0 x8 for 2 M.2 NVMe support onboard
Optional M.2 NVMe Boot Controller via SCC-A2NM2241G3-B1 - Network connectivity via AIOM (OCP 3.0 compliant)
- 6 hot-swap 2.5″ drive bays (2x PCIe 5.0 NVMe and 4x PCIe 4.0 NVMe/SATA)
- 4 cooling fans per 2U enclosure, 16K RPM; Shared Cooling Design, Counter-Rotating
- 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
- W x H x L= 449 x 88 x 730 mm
-

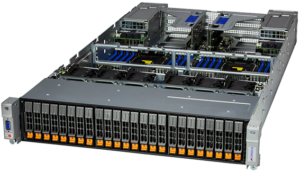

VT64 Server XS4-2S
2U 4ソケットサーバ
4th Generation Intel® Xeon® Scalable processors 4基搭載
最大16TBメモリ(Optaneメモリ使用時24TB)- Base model:SYS-241E-TNRTTP
- Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
- 64 DIMM Slots;
Up to 16TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS;
Up to 24TB with® Optane™ Persistent Memory 300 series - Optional PCIe configurations up to 8 PCIe slots with support for two double-width GPU/Accerlator cards
- Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
- 24x 2.5″ Hot-swap NVMe/SAS3/SATA3 Hybrid Drive bays (Default with 24 SAS3/SATA3 drive bays);
2x internal M.2 NVMe/SATA;
Optional RAID support via storage add-on card - 6 heavy duty fans w/ optimal fan speed control
- W x H x L = 438.4 x 87.9 x 849.3 mm
-
VT64 MicroBlade System
6U/3Uブレードシステム
用途に合わせたブレード選択し、スイッチモジュールと組み合わせ、最適なブレードシステムを構築します。
高密度、高いエネルギー効率を達成します。
6U筐体で最大28基、3U筐体で最大14基のブレードを集約できます。ブレードシステムを構成する各モジュールの詳細は、以下をご参照ください。
Intel Coyote Pass ベース サーバシステム
HPC用途は元より、ストレージ、データベース、Web サーバー 、e コマース、分析など、メインストリームのニーズに対応したパワフルなサーバーシステム
第3世代Intel®Xeon®スケーラブルプロセッサを搭載し、Intel® Optane™Persistent Memory 200シリーズによる大容量メモリや高速ストレージソリューションに対応。PCI-E 4.0にも対応しています。USBポートを標準で6ポート装備します。
-
VT64 Server XS2-2S-CYP
2Uサーバ(2.5/3.5インチHDD搭載モデルあり)
3rd Gen Intel® Xeon® Scalable processors 2基搭載
最大メモリ12TB(32 DIMM)- Base model:

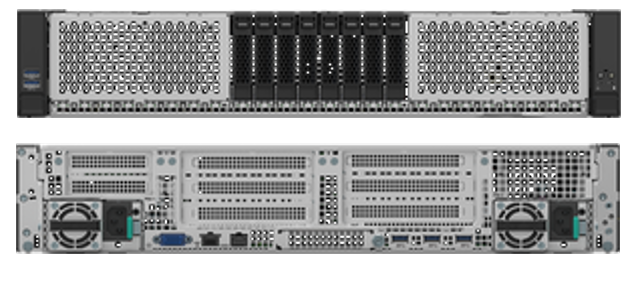

M50CYP2UR208
8x 2.5″ hot-swap NVMe/SATA/SAS hybrid drive bays(Option:max 24bays bays, 2bays at the rear, 2.5″ SSD 2bays inside)
M50CYP2UR312
12x 3.5″ hot-swap hybrid NVMe/SATA/SAS drive bays(Option:2 bays at the rear) - Intel® C621A Chipset
- 32 DIMMs up to 12TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM 200 series
- Expansion slots have various configurations
- IPMI 2.0 & Redfish
- 2100W/200V Redundant Power Supplies
- W x H x L=439 x 89 x712mm (M50CYP2UR312)
- W x H x L=446 x 87 x770mm (M50CYP2UR208)
- Base model:
-
VT64 Server XS2-1S-CYP
1Uサーバ(2.5インチHDD搭載モデル)
3rd Gen Intel® Xeon® Scalable processors 2基搭載
最大メモリ12TB(32 DIMM)- Base model:
M50CYP1UR204
4x 2.5″ hot-swap NVMe/SATA/SAS hybrid drive bays

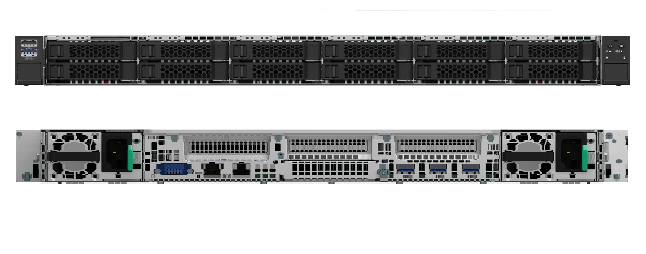

M50CYP1UR212
12x 2.5″ hot-swap hybrid NVMe/SATA/SAS drive bays - Intel® C621A Chipset
- 32 DIMMs up to 12TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM 200 series
- Expansion slots have various configurations
- IPMI 2.0 & Redfish
- 1300W/100-200V Redundant Power Supplies
- W x H x L=438 x 43 x781mm (M50CYP1UR204, M50CYP1UR212)
- Base model:
導入をご検討の場合はお気軽にご相談ください
構築から導入、保守までワンストップでのサポートが可能です
また、エンジニアチームは、提案部門と構築‧導入‧保守部門が一体となっていますので、お客様に寄り添った柔軟な対応が可能です。
- 導入コンサルテーション
- HPCプラットフォーム構築サービス
- 保守サービス
- 運用支援サービス
